1991 Alloy Yachts 106

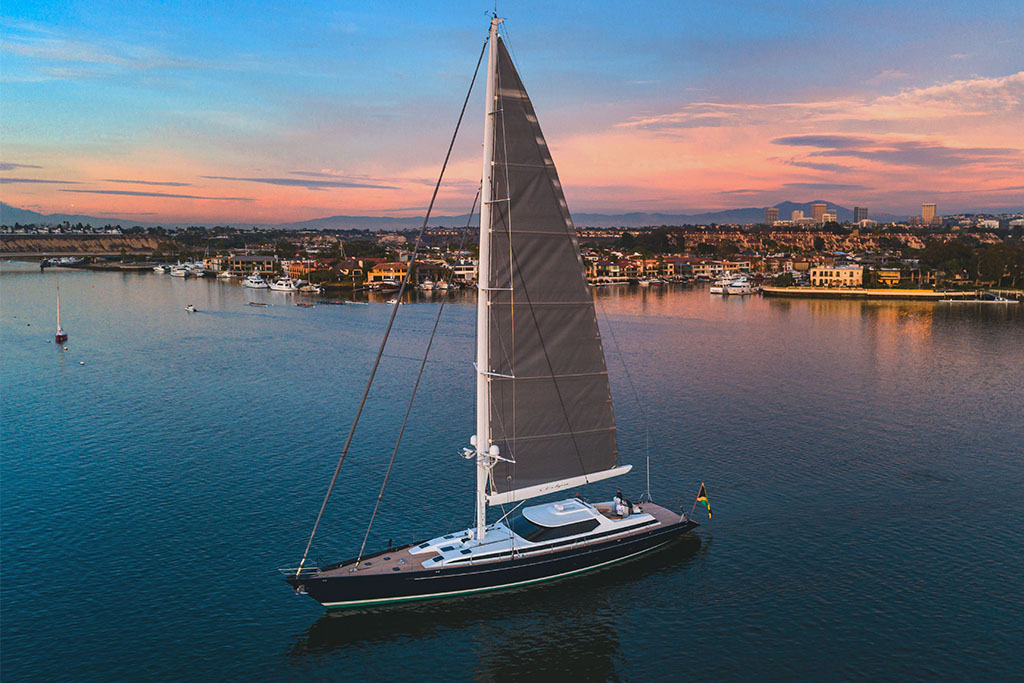

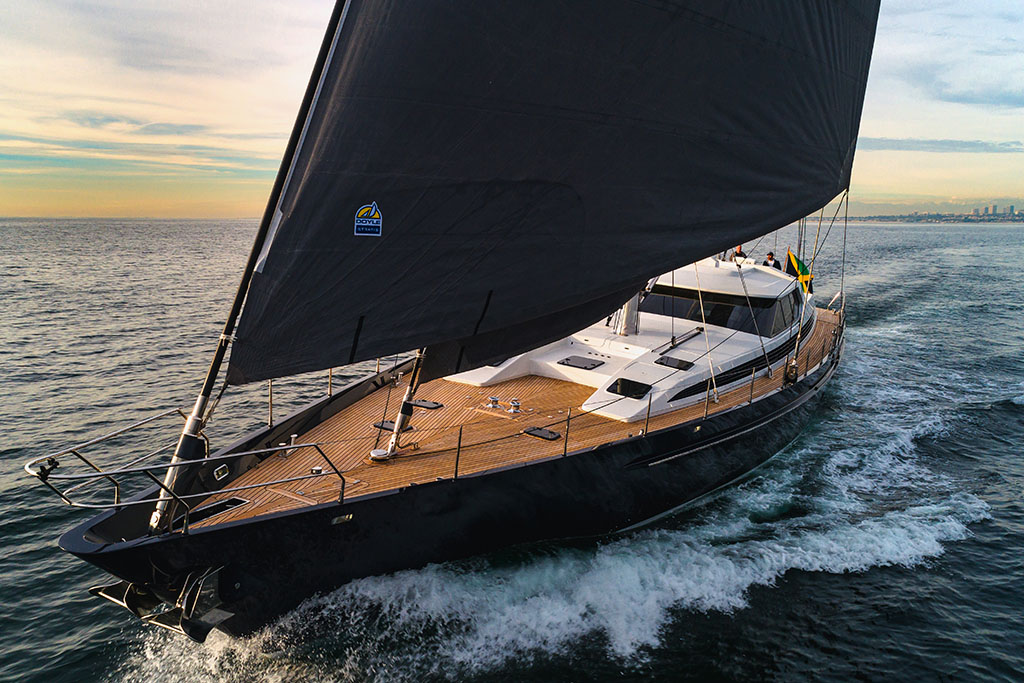

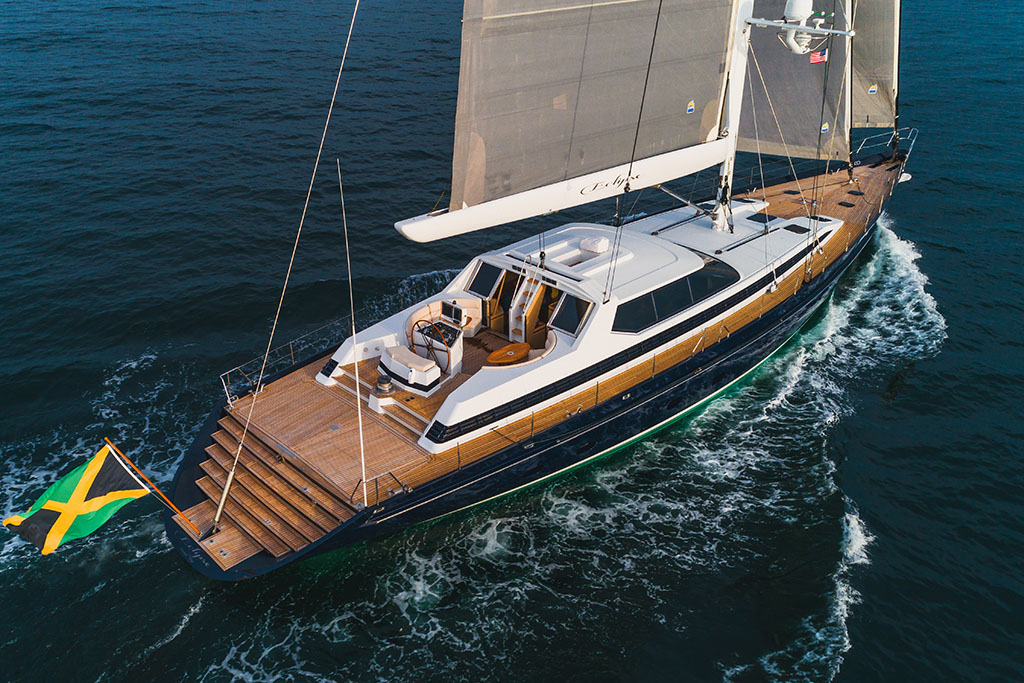

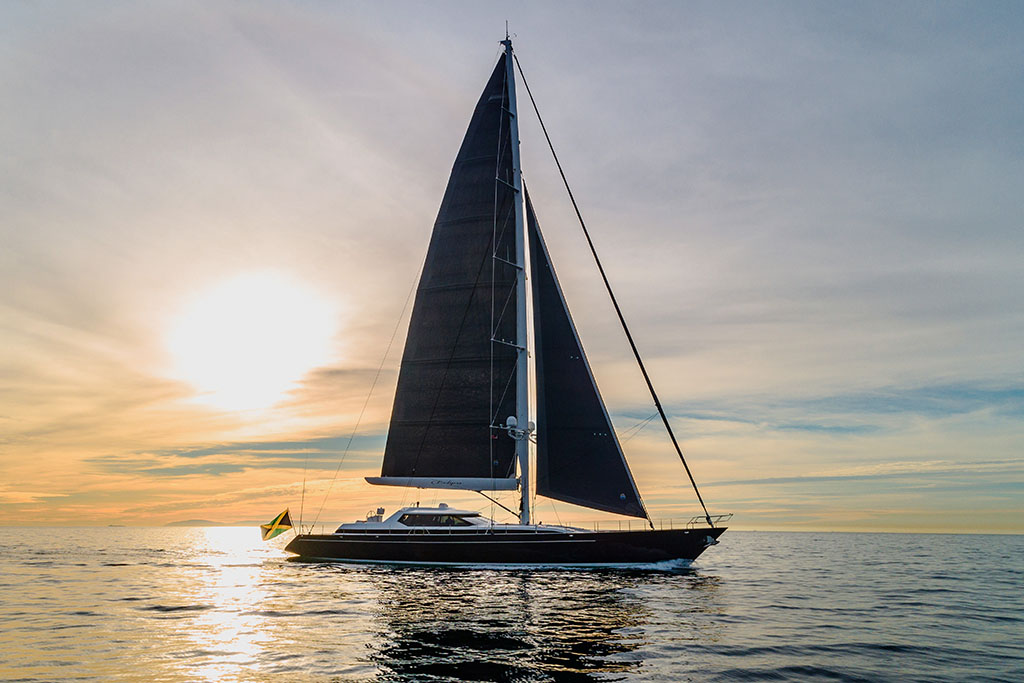

Alloy Yachts is an internationally recognized builder who collaborated with legendary architect Ed Dubois to commission this illustrious 106ft Sailing yacht "Eclipse". The timeless lines and striking design of this capable cruiser are complimented by her versatile performance and remarkable quality. Recently, she has been privileged with consecutive refits showcasing an array of enhancements and strategic investments to modernize without compromising her original grandeur.

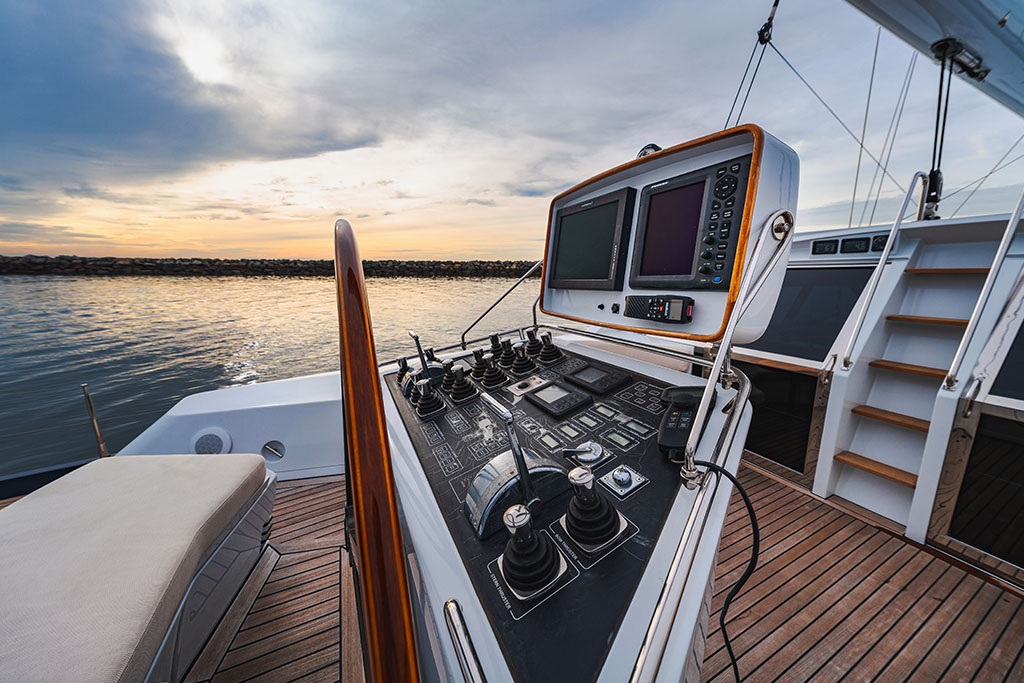

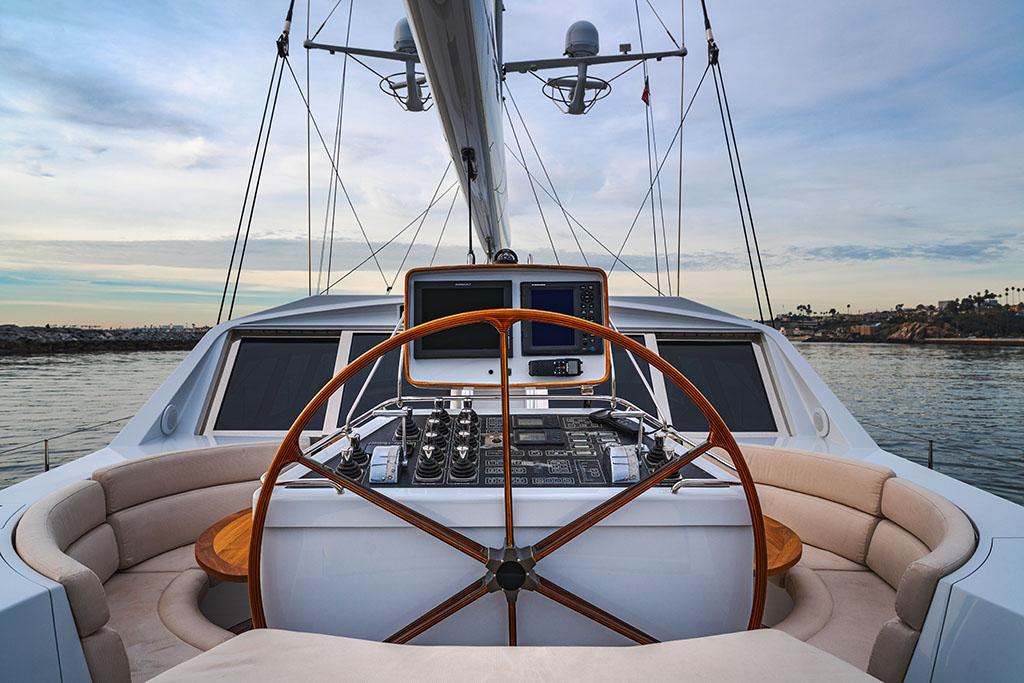

The brilliant engineering behind this hull and rig configuration boasts a sporty single mast sloop design cutter rig with fully automated hydraulic winches operated by joystick controls at the helm. The walk around teak decks provide ease of movement for crew and guests with ample seating in the cockpit, open space for lounging on the bow and aft deck plus raised seating mid ship atop the pilothouse superstructure. The large lazarrette aft conceals a davit and protected space to stow your toys and sails. The accommodating interior layout includes three generous guest staterooms, each with ensuite, separate crew quarters forward with a full beam salon mid ship that combines a space ideal for entertaining or formal dining. This blue water passage making yacht will take you to any destination locally or globally in luxury. If you are seeking limitless travel and to earn your shellback status, this is the vessel to help you accomplish it!

Specs
Hull Shape:	Semi-Displacement
Hull Material:	Aluminum

Dimensions
LOA:	106 ft 0 in
Beam:	25 ft 0 in
Minimum Draft:	11 ft 0 in
Displacement:	240000 lbs
Ballast:	765000 lbs

Engines
Total Power:	600 HP
Engine Brand:	MTU
Engine Model:	183TSV12 (452kW)
Engine Type:	Inboard
Engine/Fuel Type:	Diesel
Engine Power:	600 HP
Cruising Speed:	10 knots
Maximum Speed:	12 knots

Tanks
Fresh Water Tanks:	1 (1210 Gallons)
Fuel Tanks:	1 (4730 Gallons)

Accommodations
Number of cabins:	5
Number of heads:	5

Recent Refits:

New Atlas 45kW Shore power Converter – 2020 New 12/24V relays – 2020 New 120V engine room lighting -2020 New House batteries (Lifeline AGM zero maintenance) – 2020 New Inverter – 2020 New battery chargers (2) – 2020 New 24V engine room lighting – 2020 CO2 System, Smoke detectors & fire suppression inspected & certified – 2020 Replaced entire bilge pump system and emergency suction manifolds, valves and pumps – 2020 Replaced hoses and bilge lines – 2020 Two Northern Lights generators overhauled (heat exchangers rebuilt/replaced, coolant change, injectors replaced, hoses replaced, oil and filters changed) – 2020 Rig, steering, bow & stern thruster hydraulics serviced or replaced (valve block assemblies rebuilt, all corroded hydraulic lines replaced, hydraulic reservoirs removed and pressured tested and re-installed with sight tubes and temperature gauges) - 2020 Staysail winch rebuilt, Genoa winch rebuilt, Main halyard winch rebuilt, Retractable bow thruster removed and completely rebuilt – 2020 Starboard PTO pump seals replaced, All PTO pumps pressure checked and rebuilt – 2020 24V emergency pump serviced and reinstalled – 2020 New accumulator tank – 2020 Replaced all air valves and flush kits on heads – 2020 Added a new A/C air handler in Lazarette next to new Atlas converter – 2020 New A/C air handler in starboard Salon – 2020 New carpets in port & starboard guest staterooms – 2021 Stripped and re-varnished teak & holly pilot house floor – 2021 New galley cabinets and drawers, pilothouse fridges serviced – 2021 New 4'' sound and fire-proof insulation above engine room - 2020 Two new teak cockpit tables and teak decks stripped and re-caulked – 2021 Main engine: new coupling for main & transmission (big job), new bell housing, new injectors, heat exchanger rebuilt, coolant replaced, alternator rebuilt, new drive belts, valve clearance, oil & filter change, oil sump pump line replaced, new exhaust hoses & lagging from engine room aft (big job) – 2020 Pneumatic controls replaced or rebuilt for each helm station – 2021 Replaced sea chest corroded standpipes, flanges, valves, strainers and gaskets for port & starboard – 2020 New polycarbonate glass lids for both sea chests – 2020 New Vessel rig (mast, boom, shrouds, spreaders, sheets) - 2017 New Doyle Stratis sails (main, staysail, genoa & asymmetrical spinnaker) – 2017 New exterior paint job – 2017

Rig & Sail Highlights:

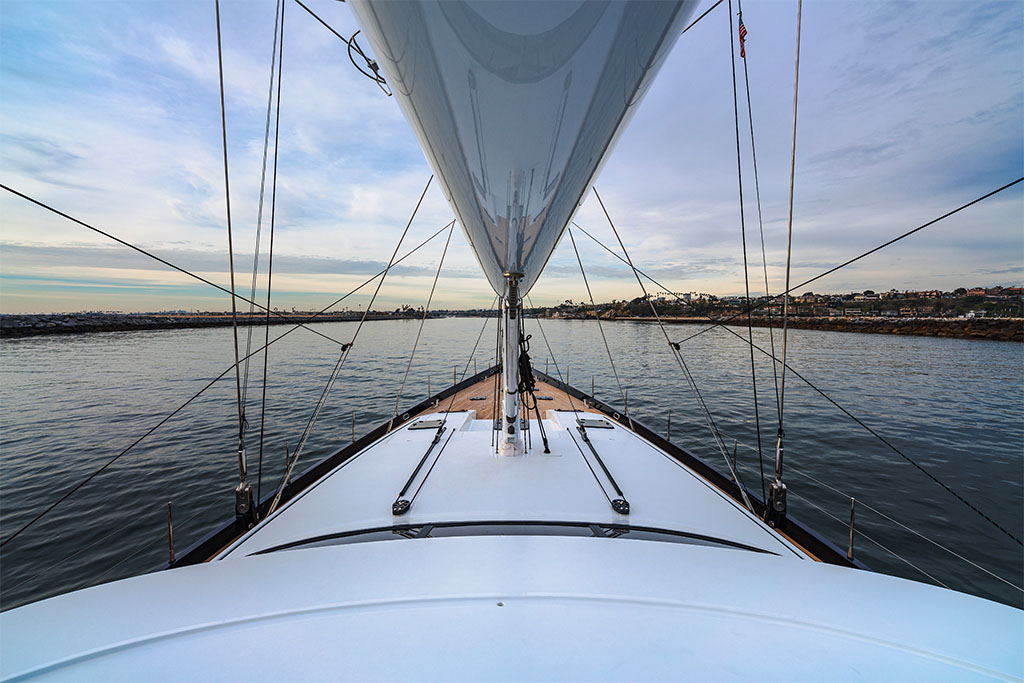

Doyle Stratis Sails – boom furling main, staysail, genoa and asymmetrical spinnaker Carbon composite boom shell Nitronic shrouds and stays Reckman Furlers Mandrel outhaul system Southern Spars mainsail track and cars with Torlon slider bearings and Harken slider case Harken blocks & 316L Wichard shackles & D-rings Internal preventer sheaves Spinlock jammers Service halyards Captive winches

Hydraulic Highlights:
Retractable Richfield Bow Thruster – 50hp Fixed Richfield Stern Thruster – 50hp Running backs with Harken blocks Mandrel Outhaul system Reckman Boom furler Southern Spars inner forestays & check stays Southern Spars head stay, staysail stay, and back stay Southern Spars Luff tensioner Southern Spars Vang Southern Furl Reel winches Dual Maxwell anchor windlass winches

Navigation/Electrical Highlights:

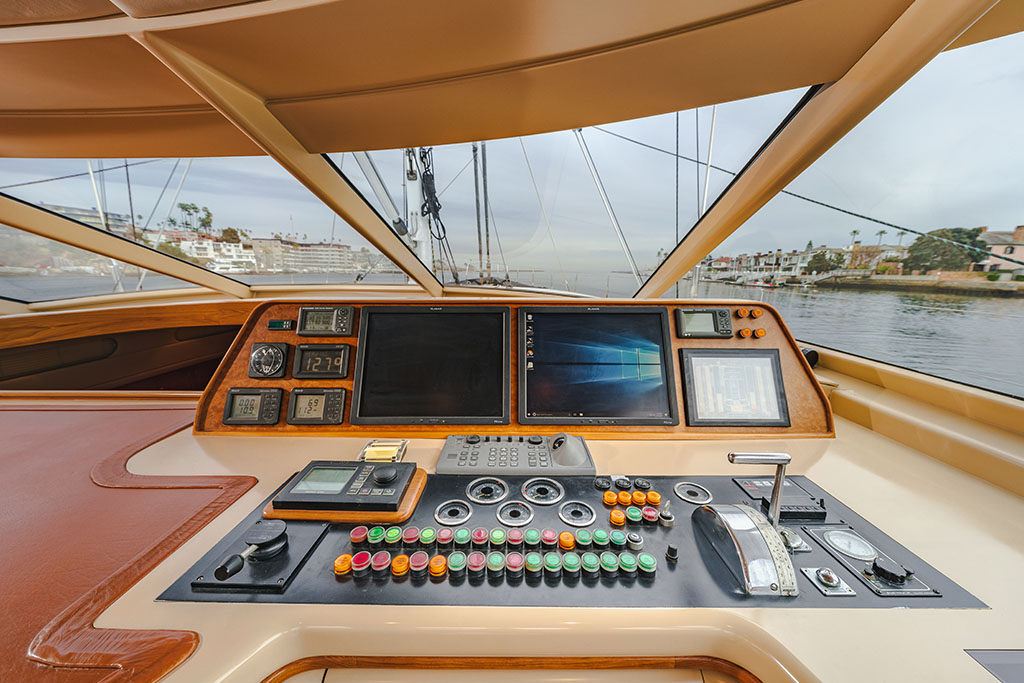

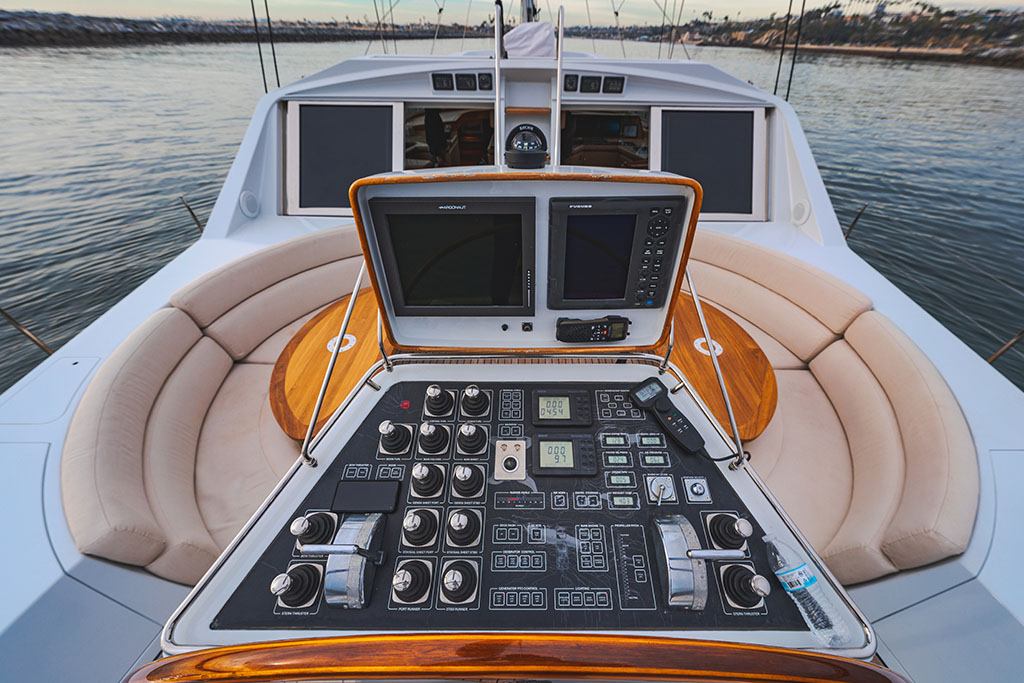

Furuno navigation package – Chart plotter, AIS, GPS & Radar B&G Hercules 2000 – boat speed, depth, wind speed (4) B&G Hercules 20/20 - Heading SIMRAD Autopilot SIMRAD VHF Radio SKANTI HF SSB Radio Vessel Alarm & Monitoring system display Atlas SHF-45V ShorePower Converter (45kW) – New 2020 Dometic A/C & Heat System Webasto air handlers Argonaut Navigation Computer Dual trumpet horn Gyro compass LED navigation lights Articulating search light Spreader lights Honeywell limiter switches 110V & 24V LED lighting SeaTel Satellite TV Antenna DVD Player Two Northern Lights Generators 55kW Generators Redundant navigation systems throughout

Deck Highlights:

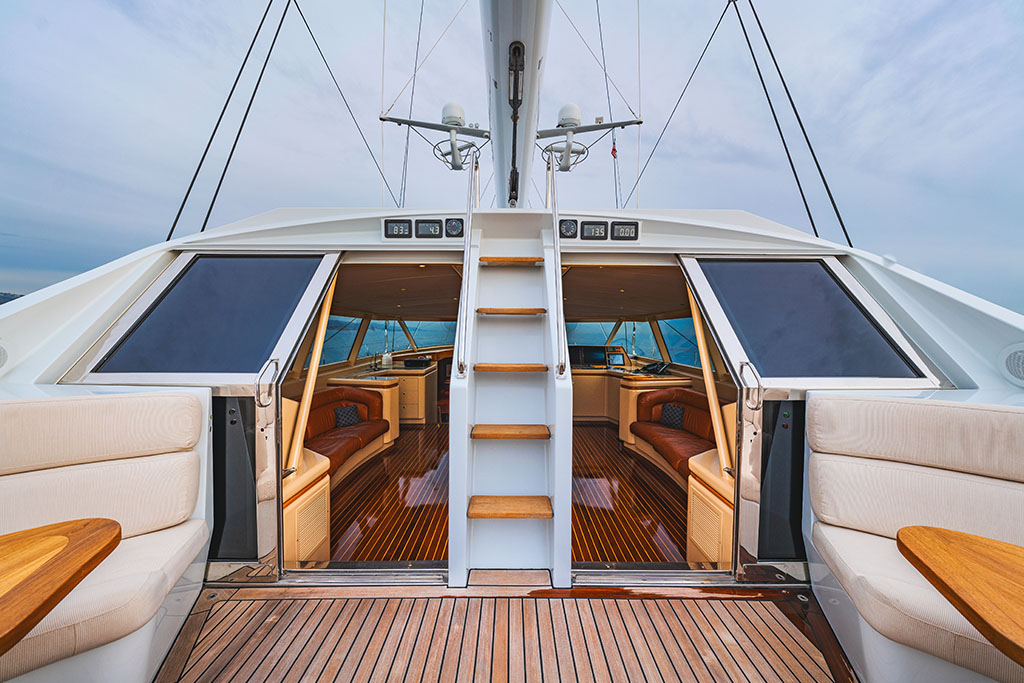

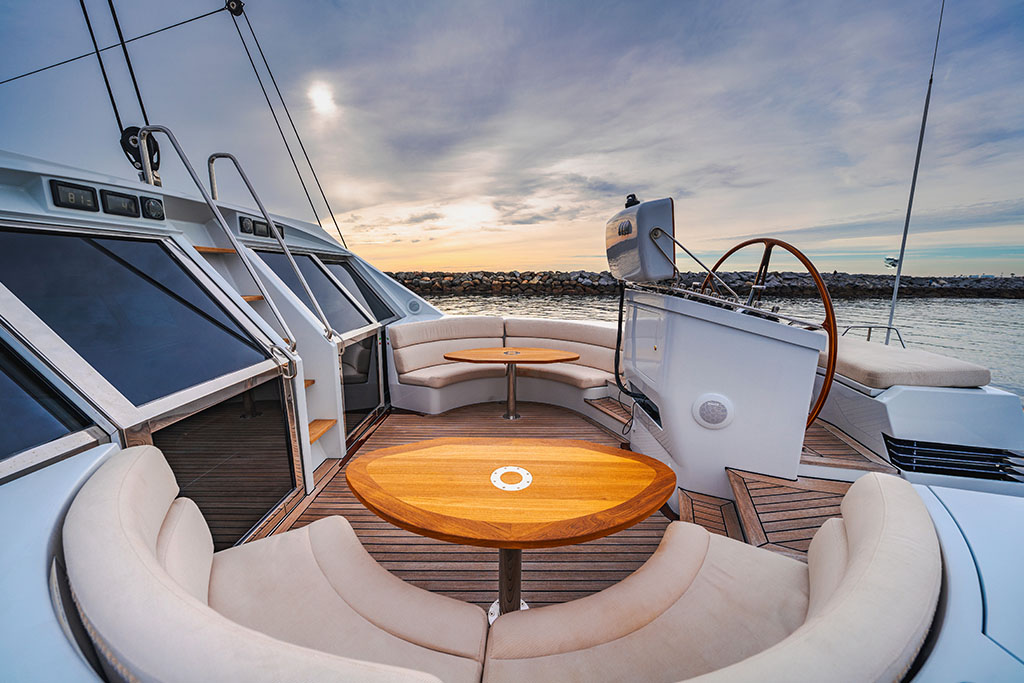

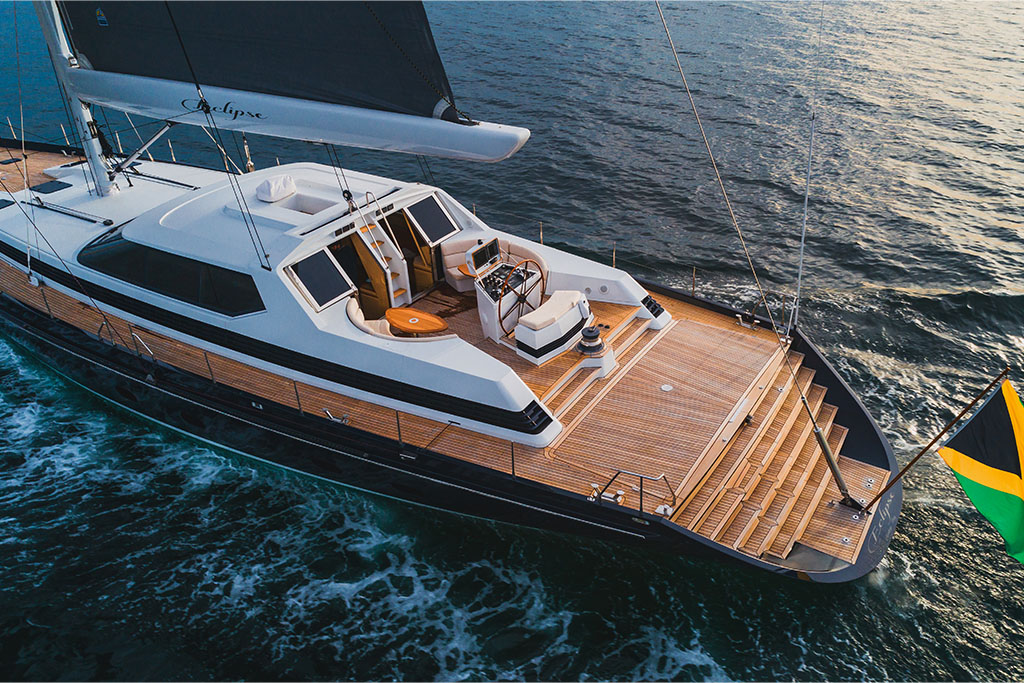

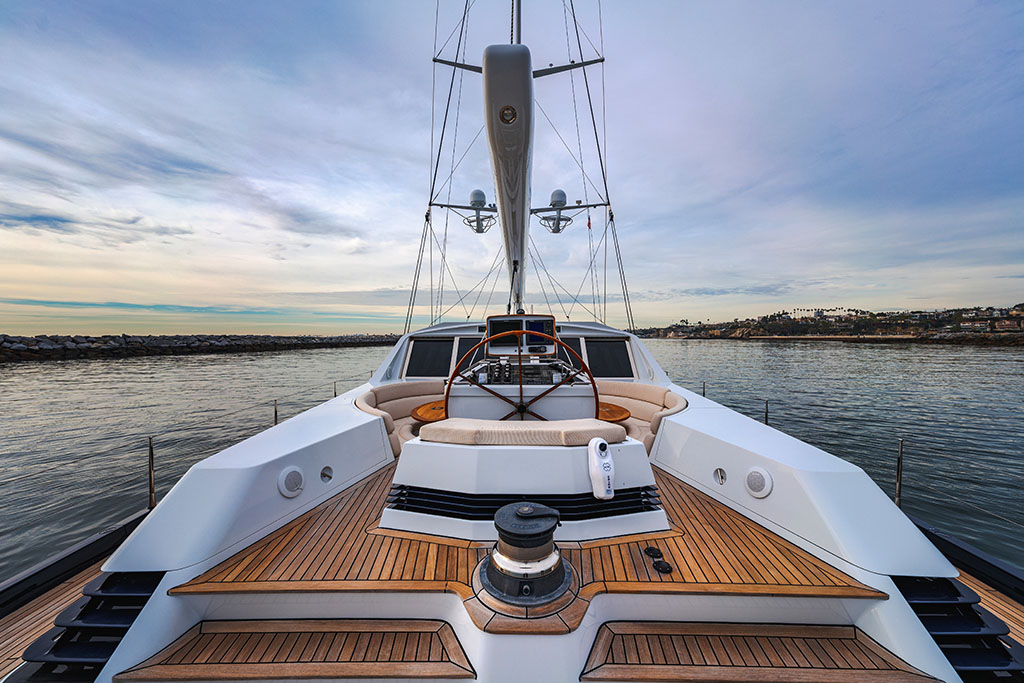

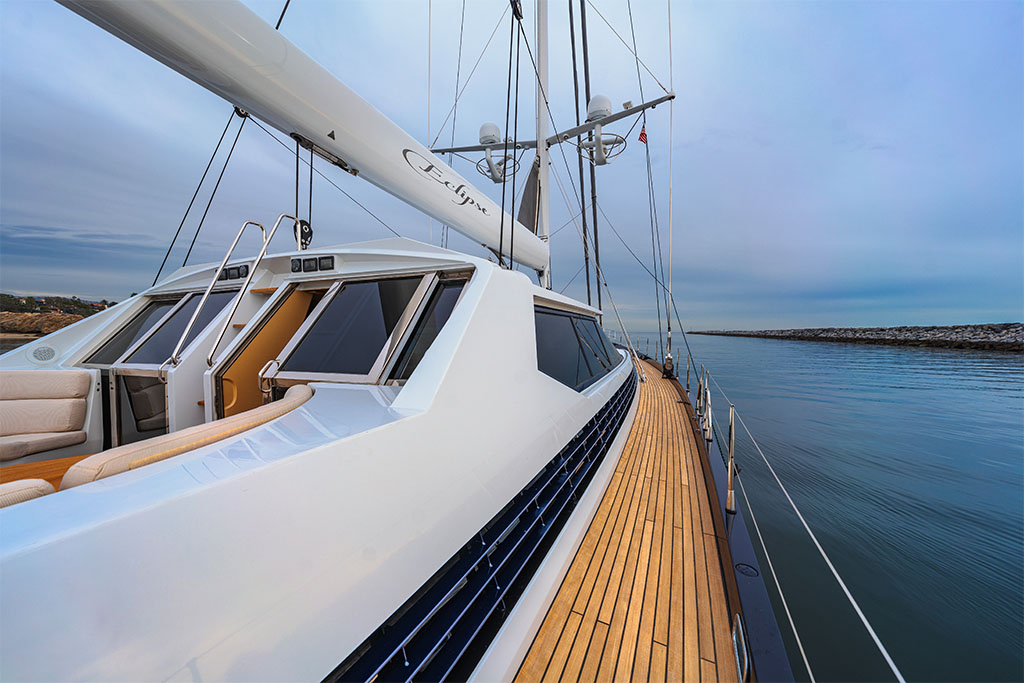

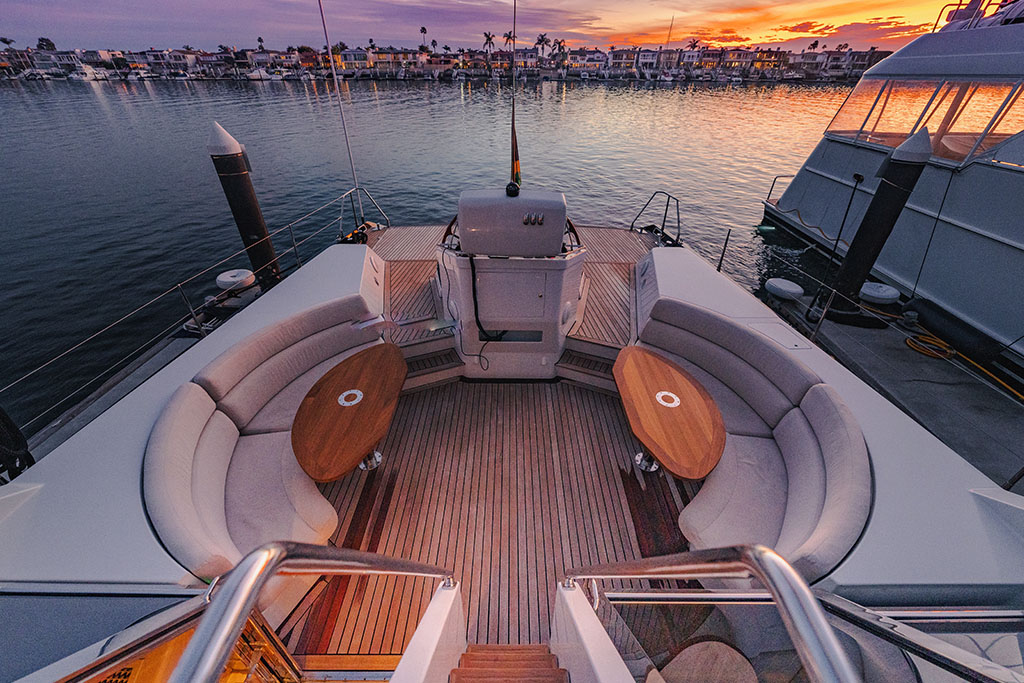

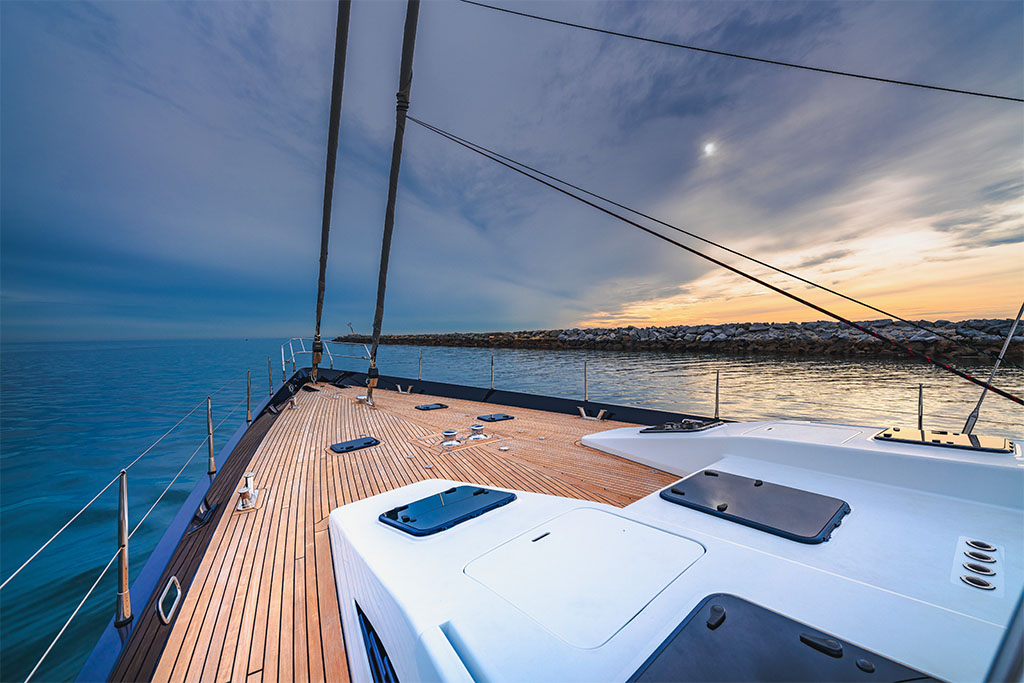

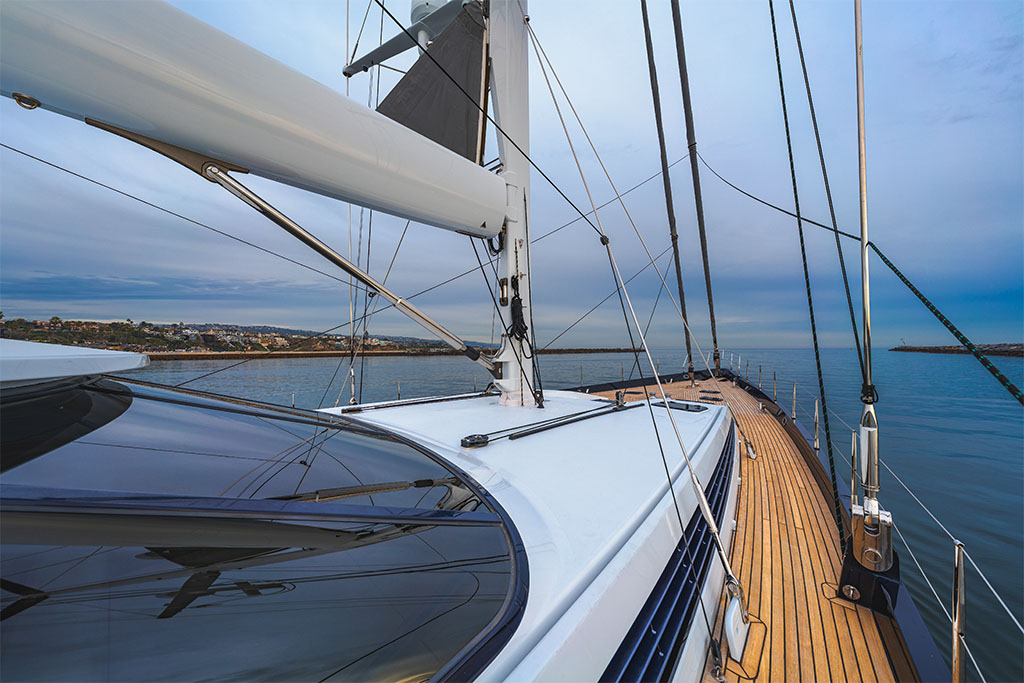

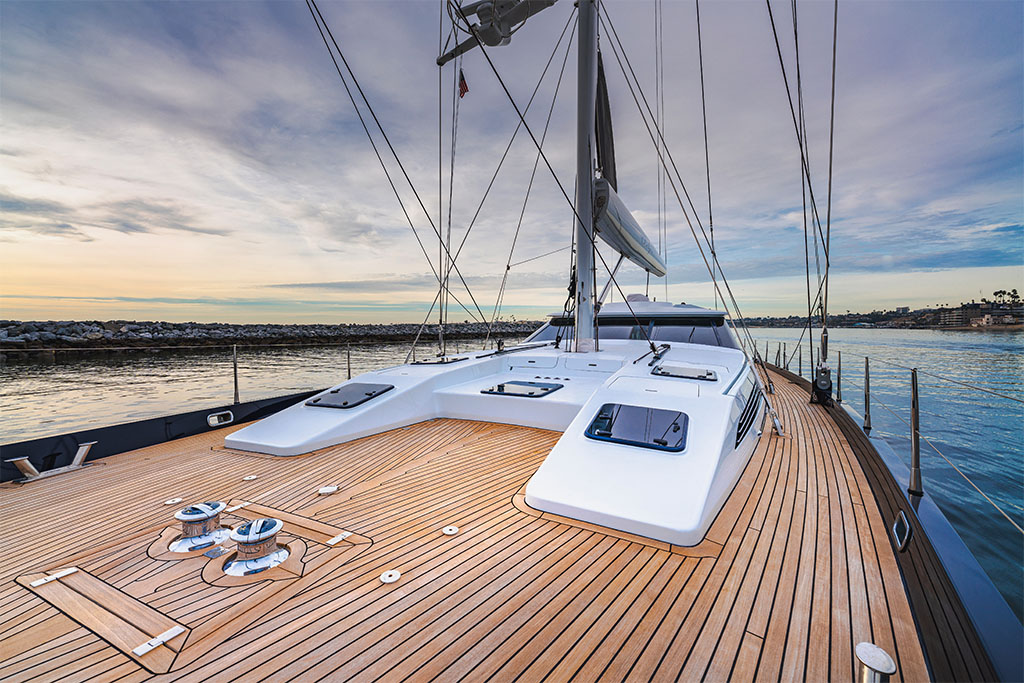

Dual cockpit settee arrangement with new teak tables Raised guest seating area forward of cockpit Complete teak decks – refinished 2021 Dual pneumatic cockpit sliding doors – stainless steel with tinted windows Lewmar 110 Hydraulic Spinnaker Winch Lewmar 700 service winch Simpson-Lawrence bow winches Bose speaker sound system Lazarrette with ample storage for sails, toys, etc. Tender davit – stowed in Lazarrette Hot & cold fresh-water shower

Pilothouse Highlights:

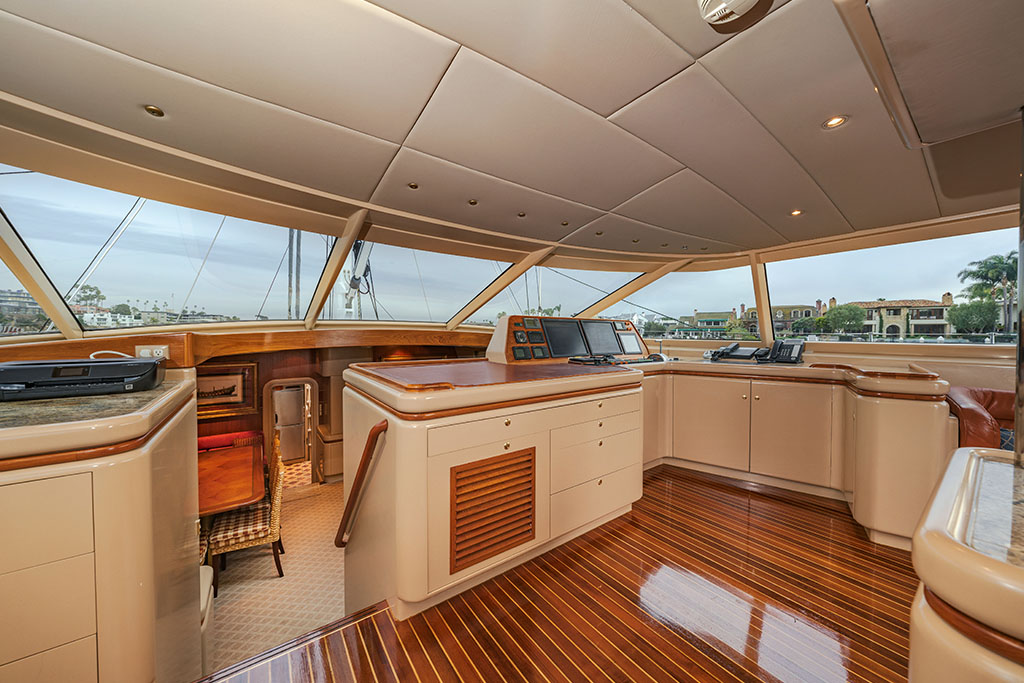

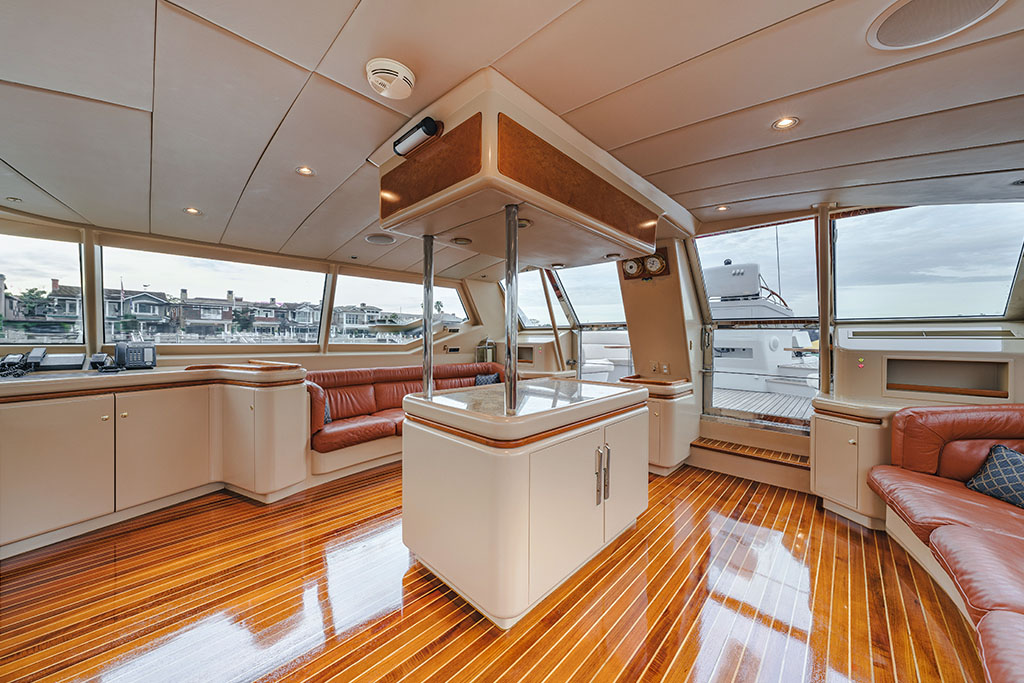

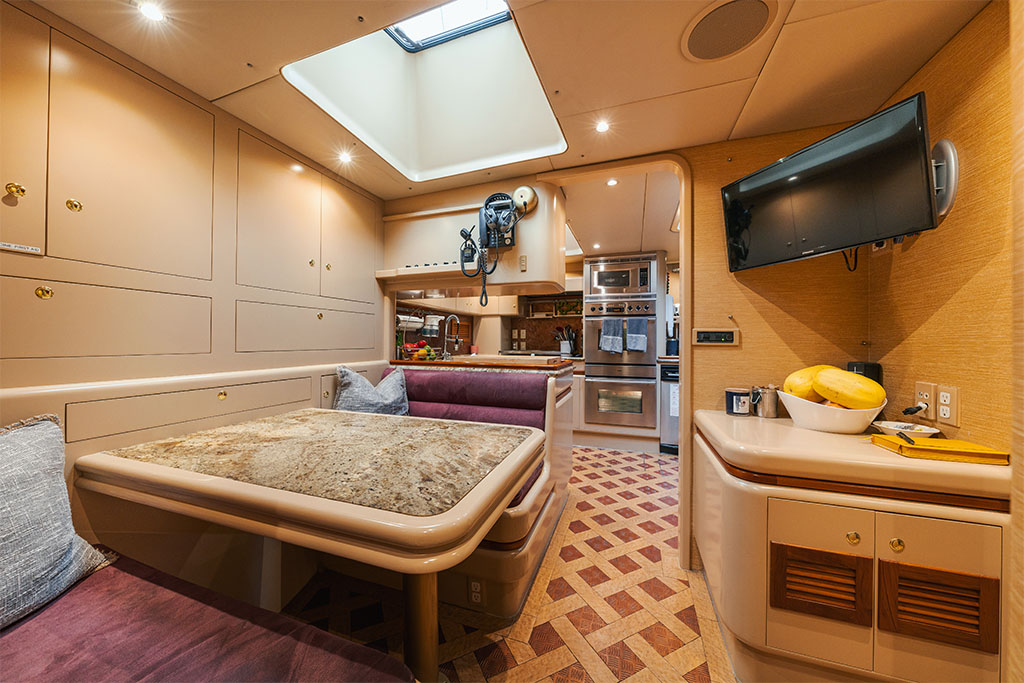

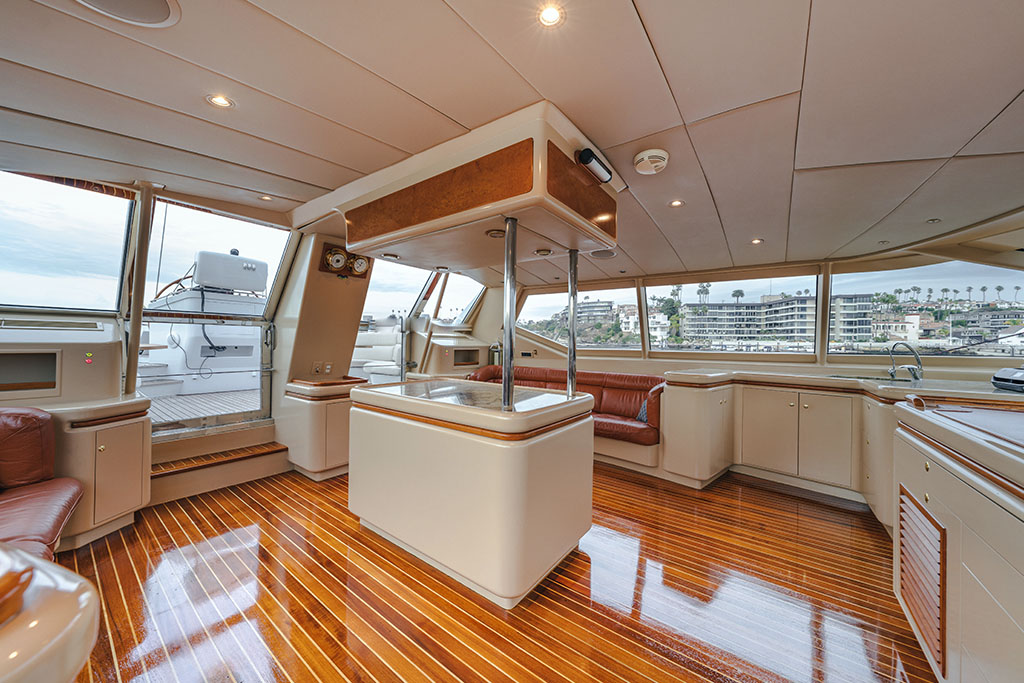

Teak & Holly floors – refinished and varnished 2021 Ample settee seating port & starboard Wet bar Granite counter tops U-line icemaker Dual fridges centerline – serviced 2020 Lower helm station Accent and courtesy lighting

Galley Highlights:

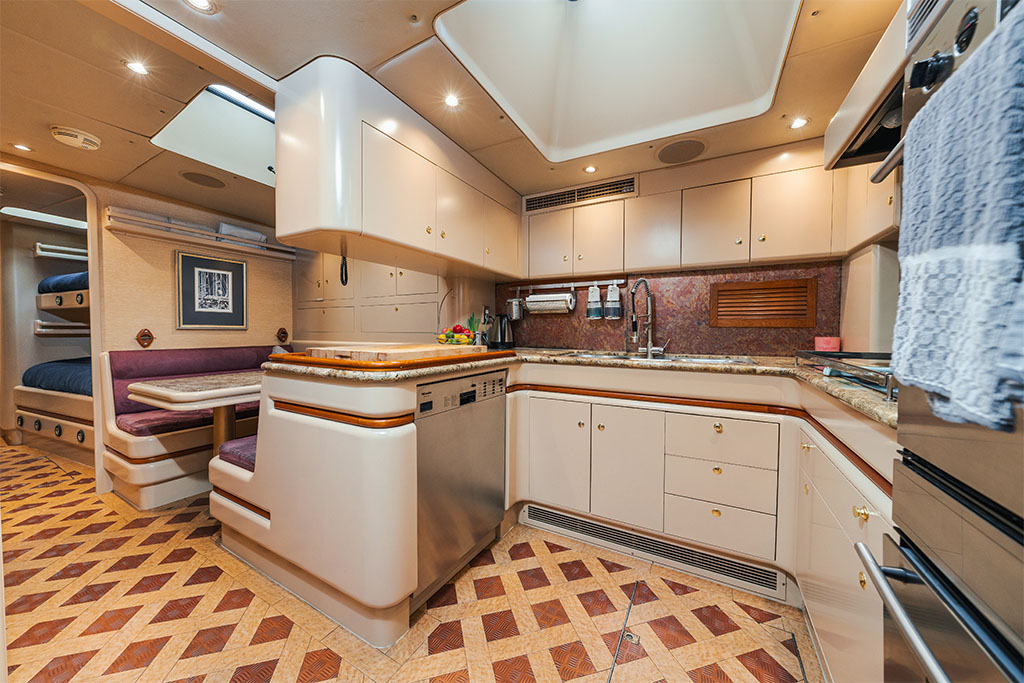

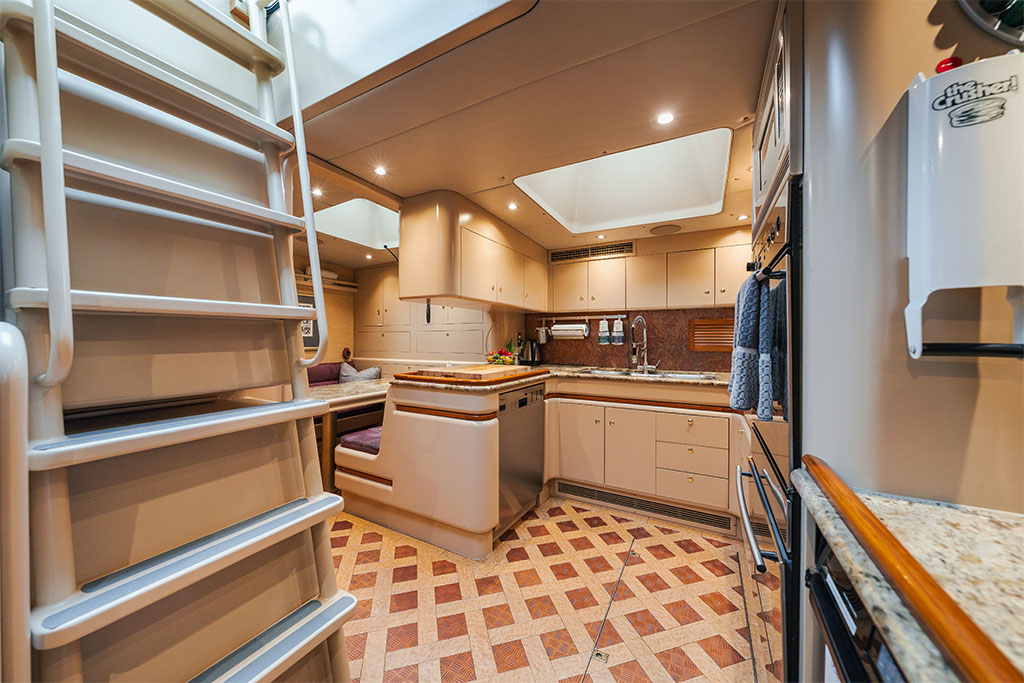

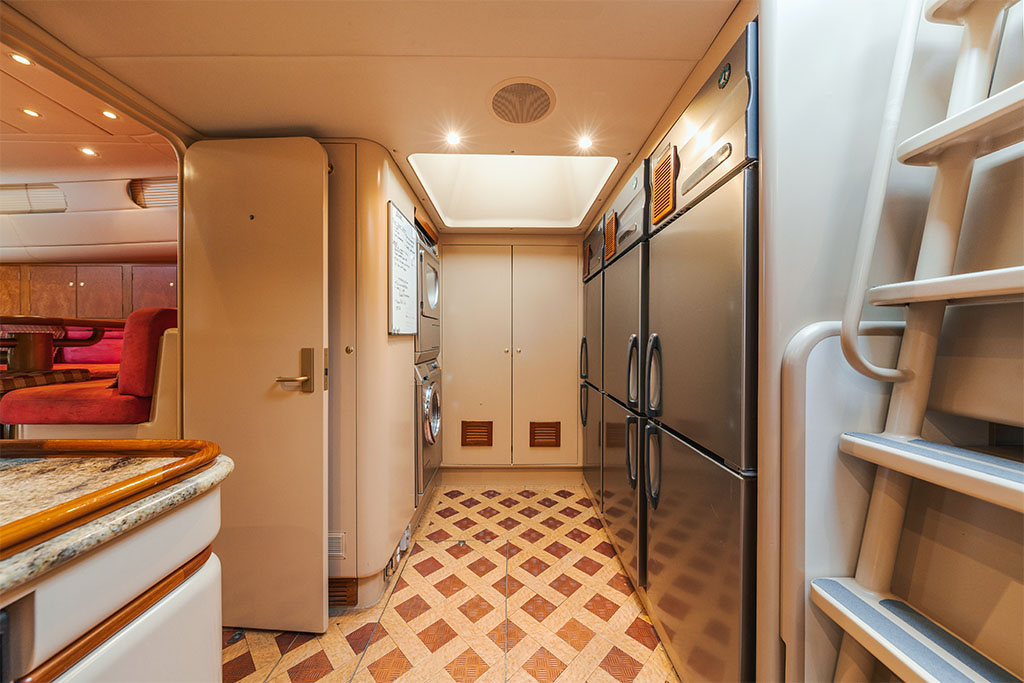

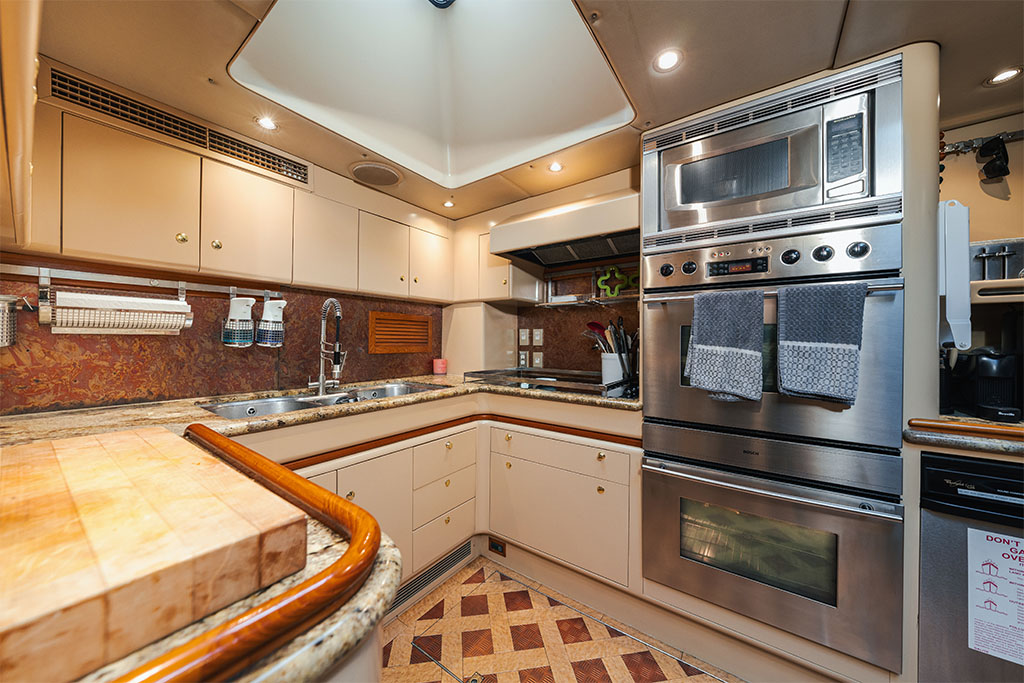

Bosch 4 burner glass top range Bosch Stainless steel Convection Ovens (2 units) Hoshizaki Fridge & Freezer Deep storage (6 units) Granite counter tops Bosch Microwave Miele Premiere Dishwasher Whirlpool trash compactor Miele Professional Washer Miele Professional Dryer Dual stainless steel deep basin sinks Updated galley faucet Espresso maker Panasonic intercom 110V outlets A/C & Heat controls 12/24V overhead and courtesy lighting Separate crew hatch entrance

Salon Highlights:

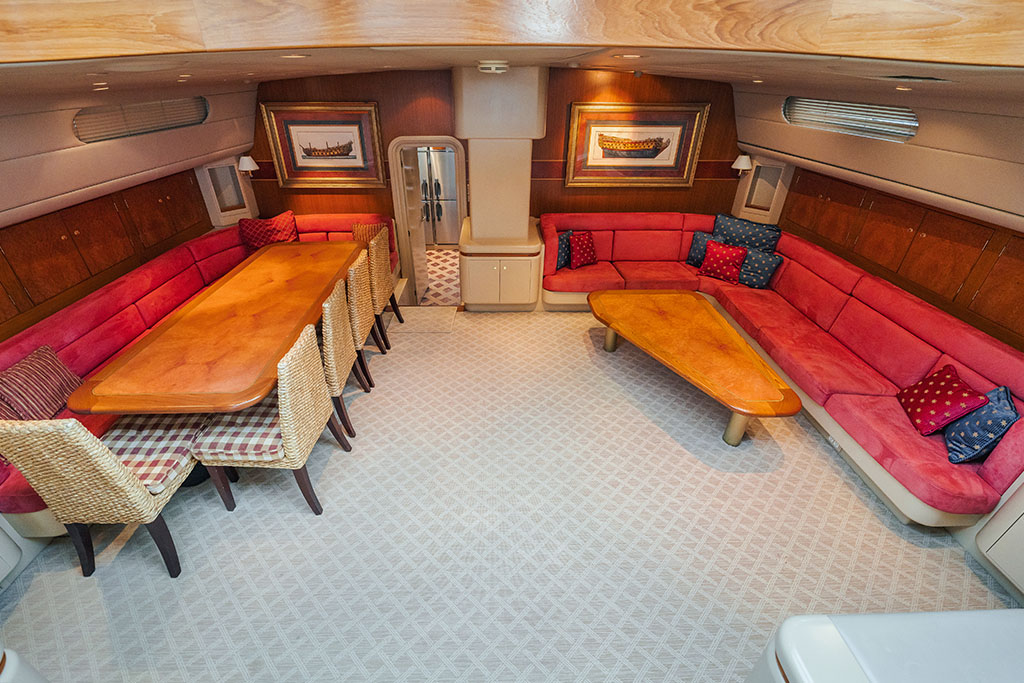

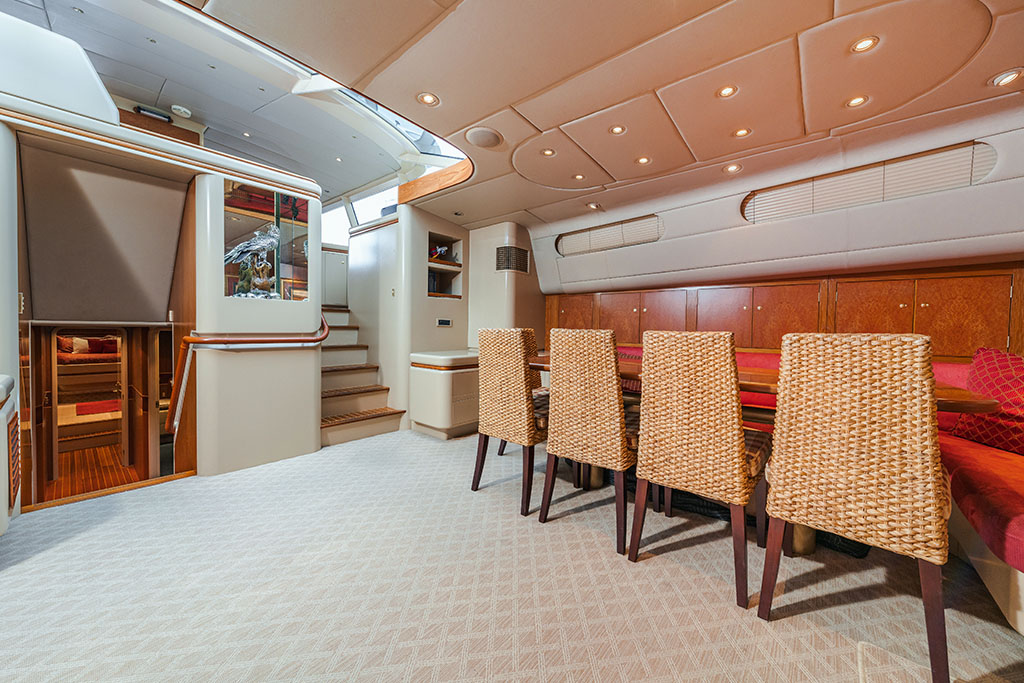

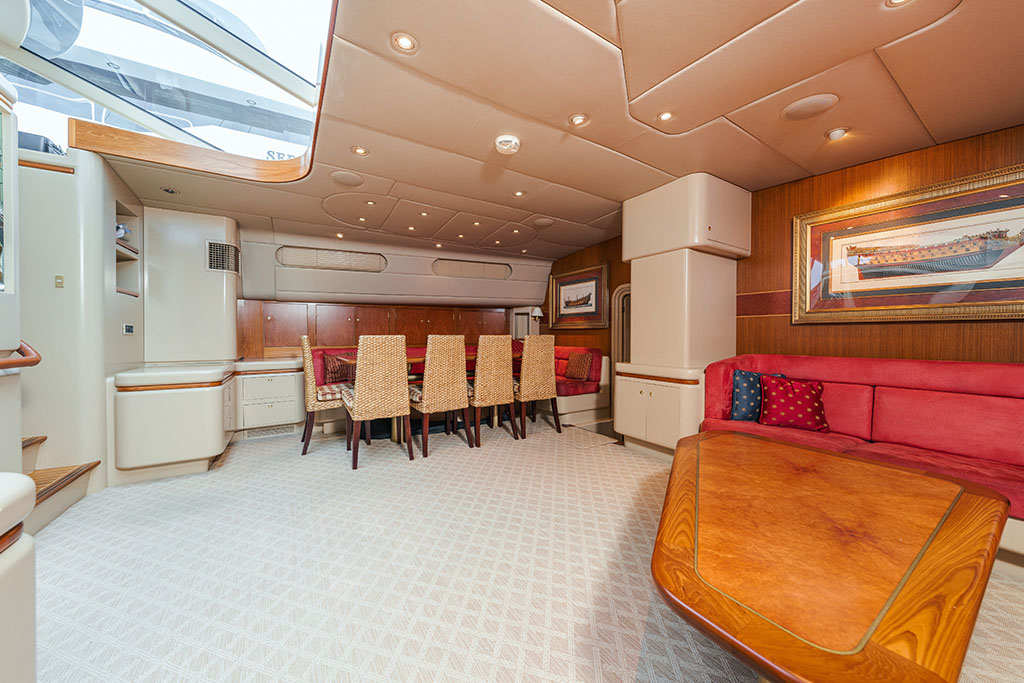

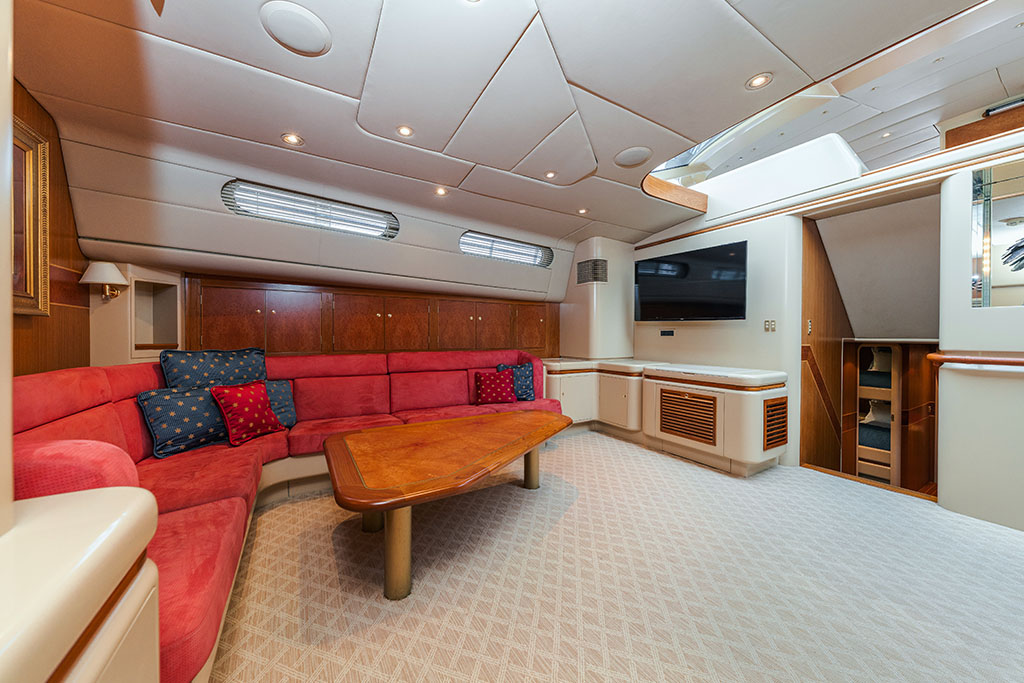

Varnished Dinette Table with seating for 12 Large entertaining space L-shaped settee Samsung Flat screen TV Complete glassware and dining set Quality woodwork Ample storage Updated carpeting Recessed overhead lighting Privacy curtains Accent lighting

Accommodation Highlights:

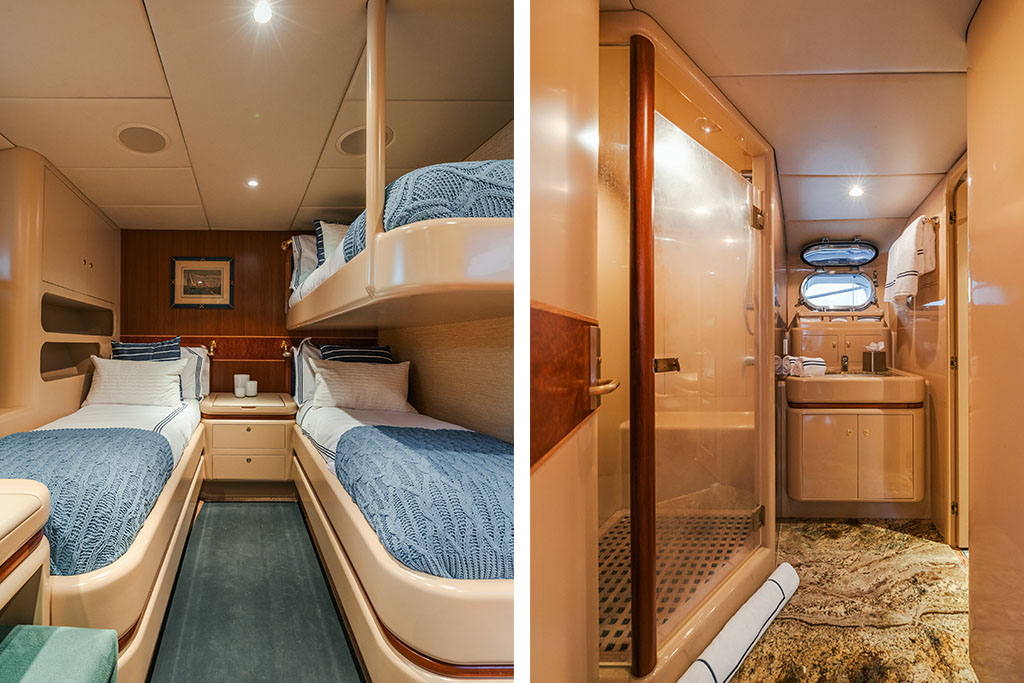

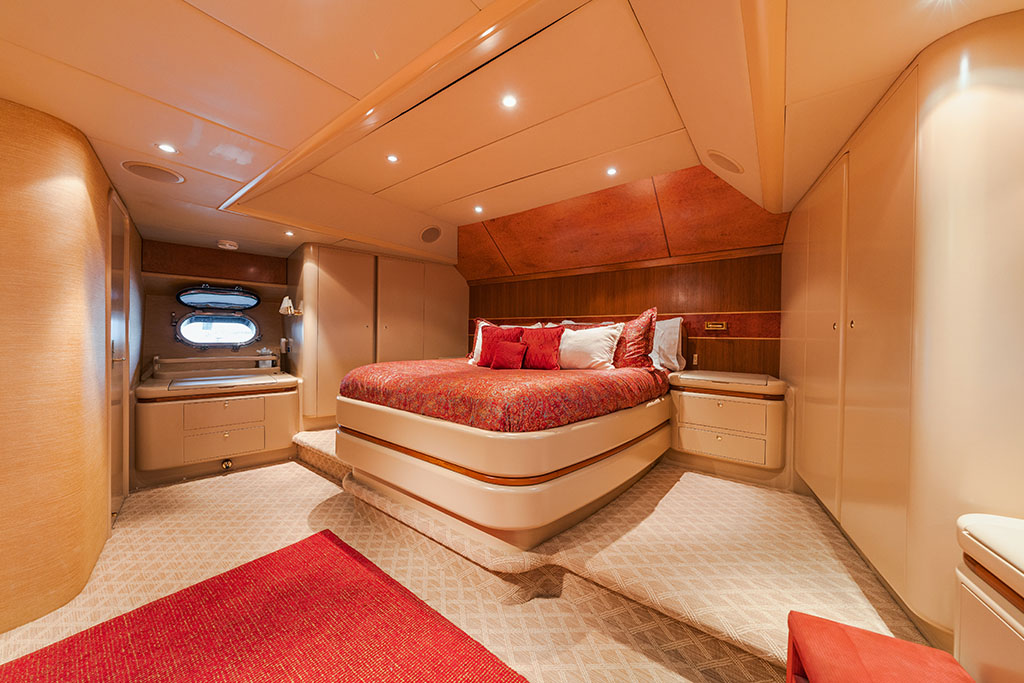

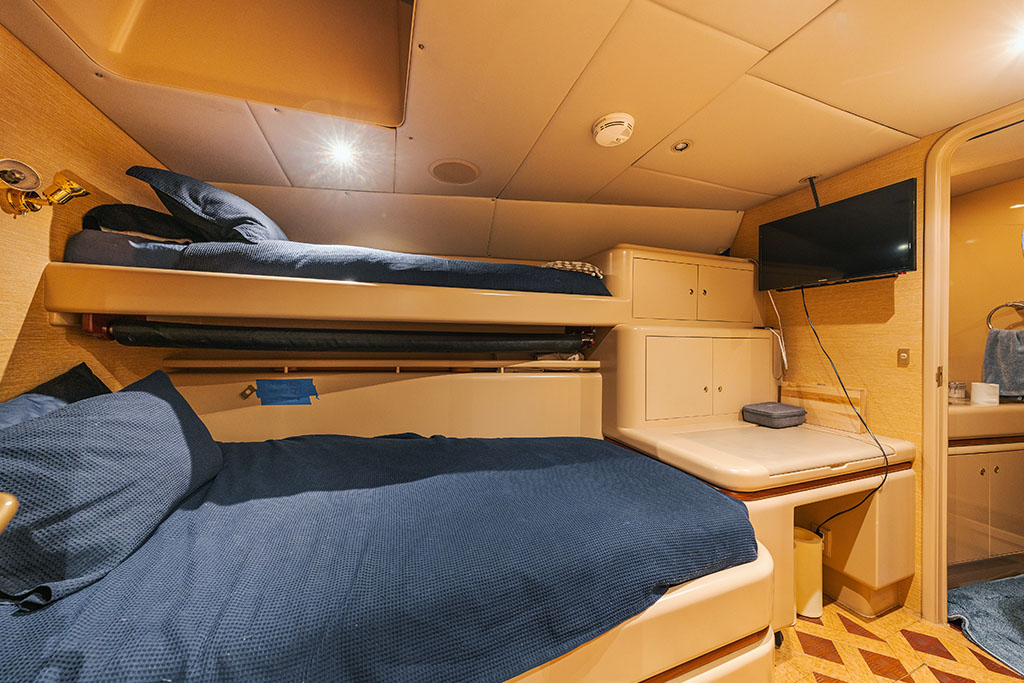

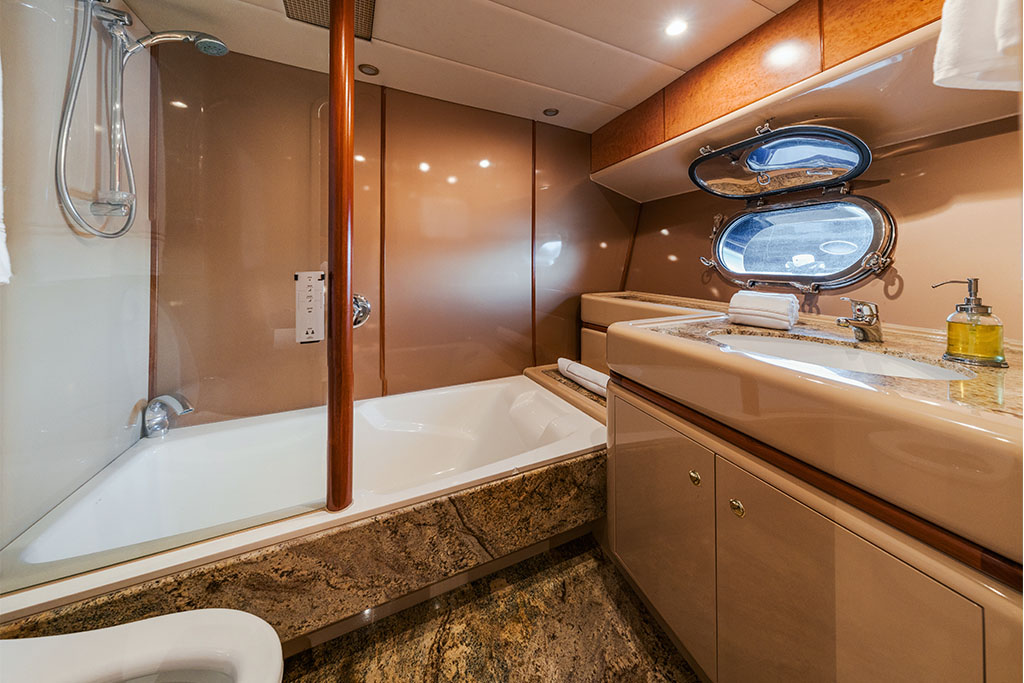

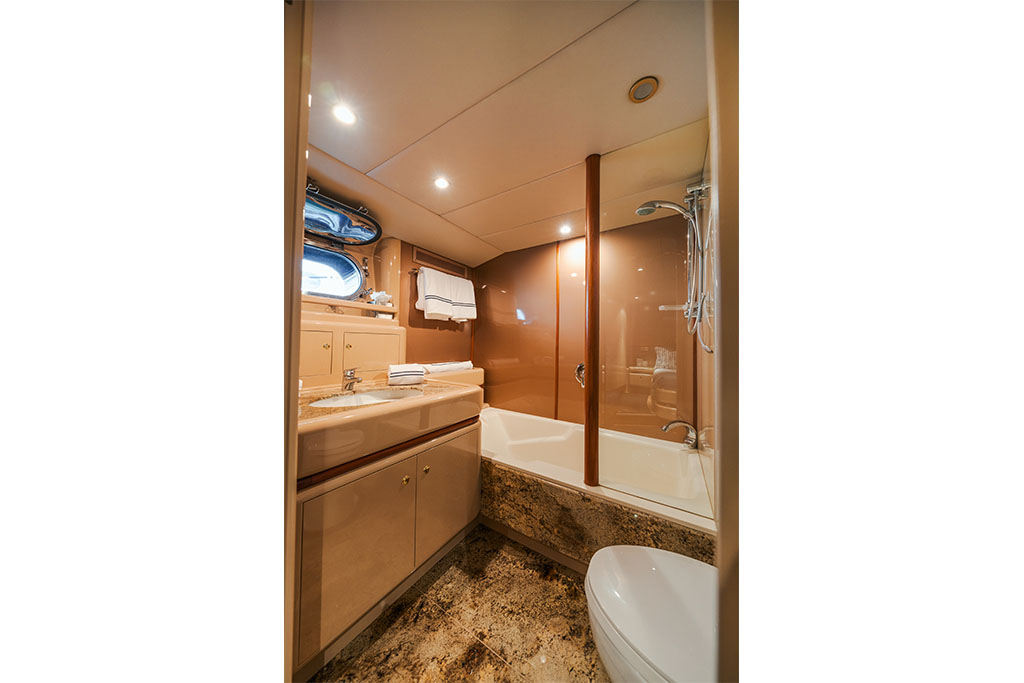

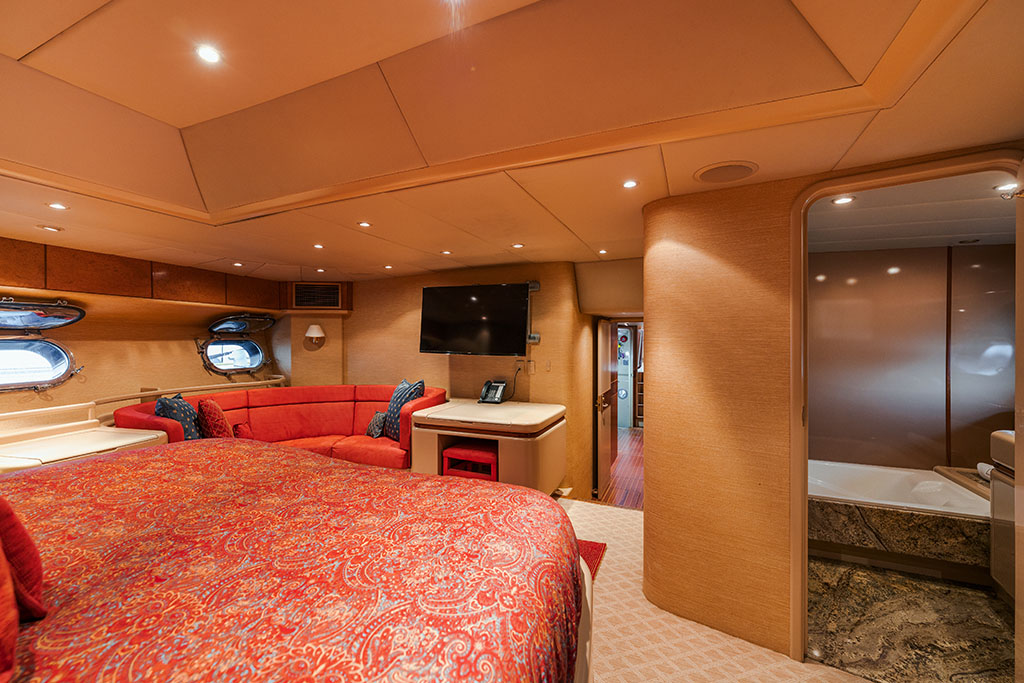

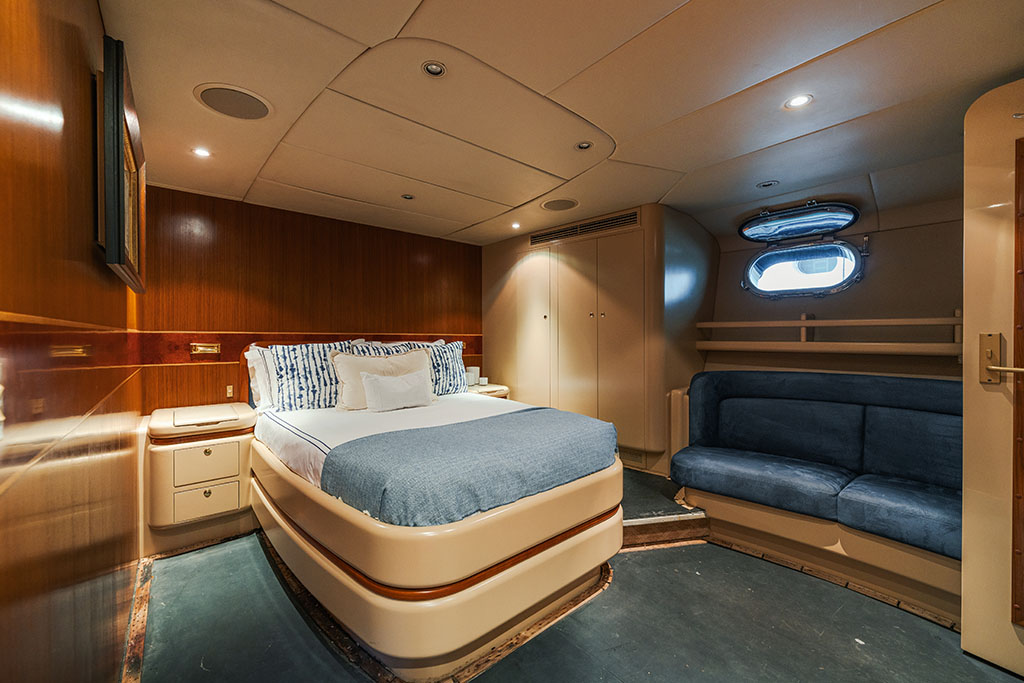

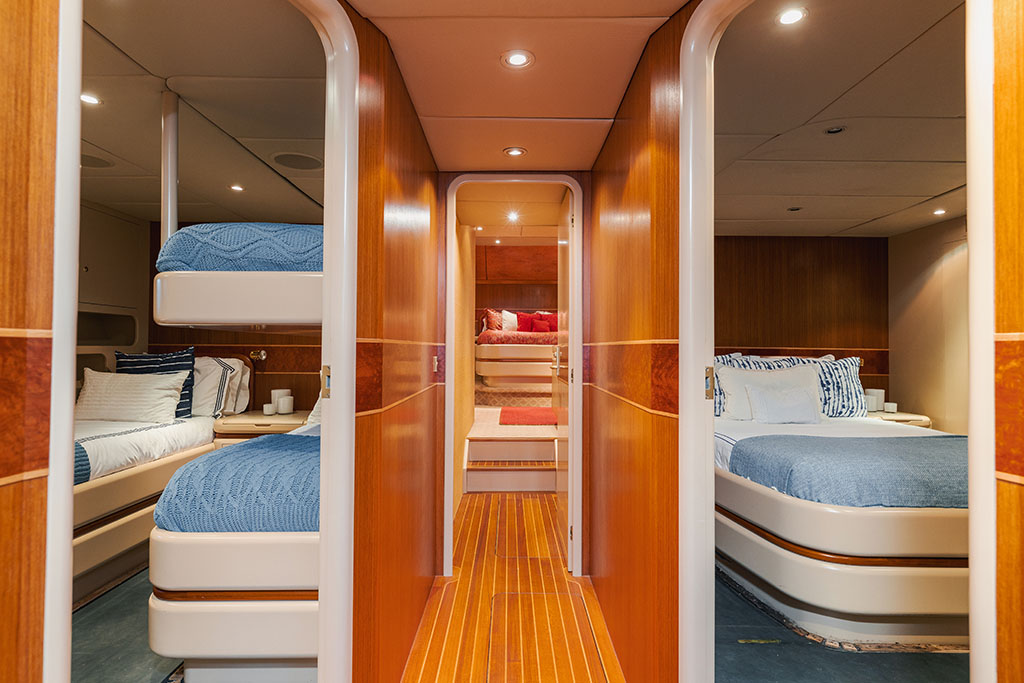

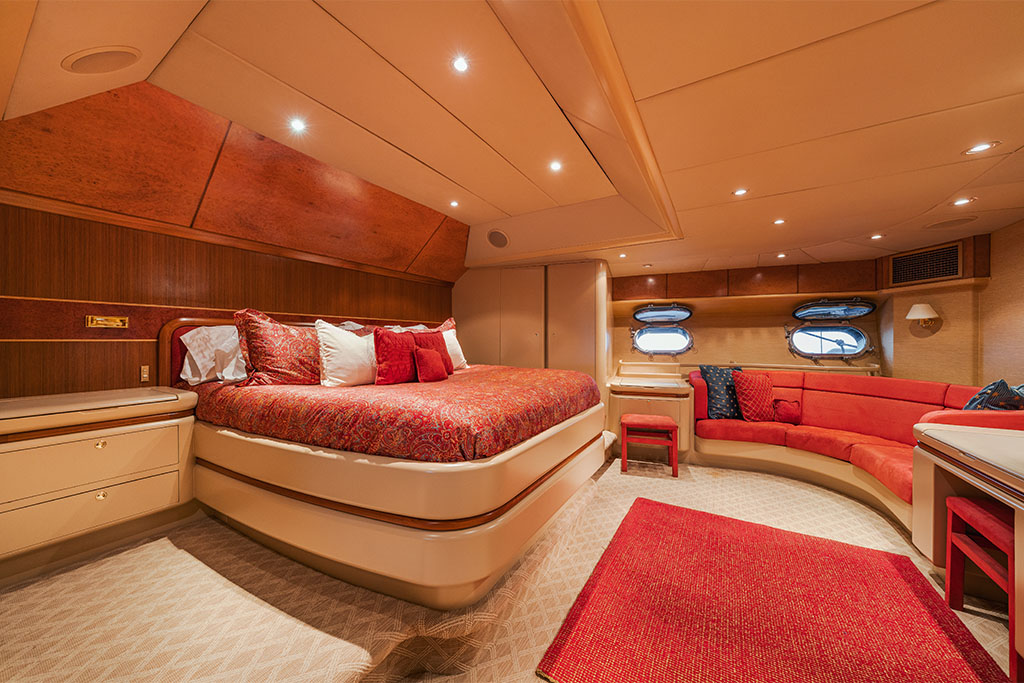

Three stateroom layout, each with ensuite (sleeps 7) Master Stateroom mid ship – Full beam, King size walk around berth, shower and bath, two full size dual closets, updated carpeting, accent lighting, stainless steel port lights with dead light, settee, vanity, Samsung TV, AC & Heat controls, Microphor head and high ceilings. Guest stateroom port side – Full size walk around berth, stall shower, full size closets (3), A/C & Heat controls, recessed overhead lighting, dual nightstands.  Guest stateroom starboard side – Three berth configuration with one single and two bunks, stall shower, full size closet (1), A/C & Heat controls, recessed over lighting, nightstand, stainless steel port lights, navigation table and abundant cabinetry storage.

Crew Mess Highlights:

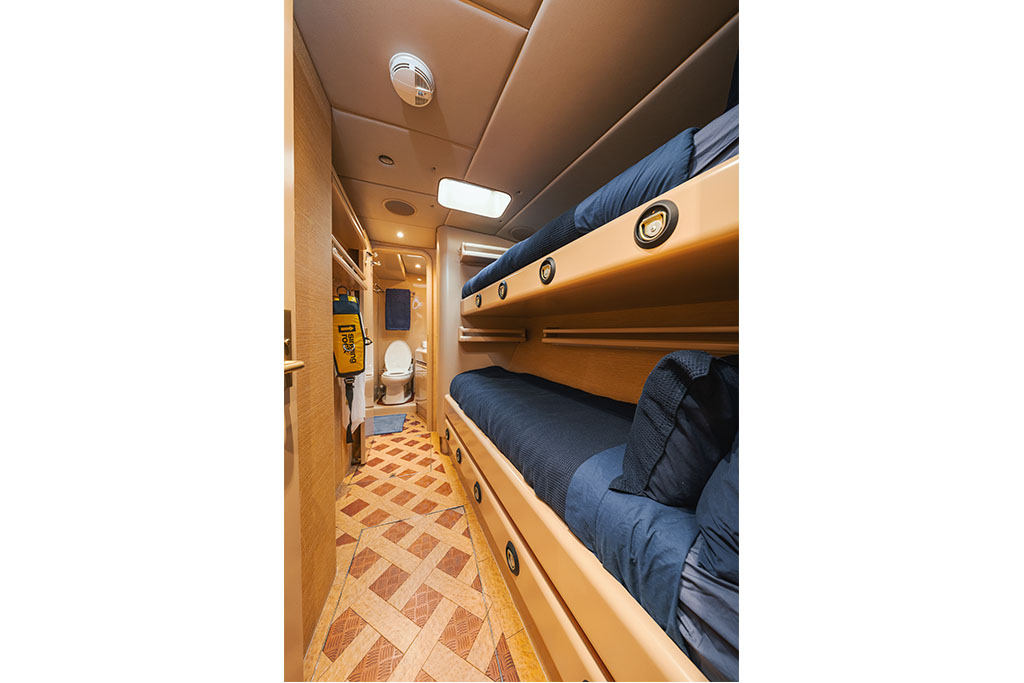

Two separate crew staterooms, each with ensuite (sleeps 4 crew) Samsung flat screen TV Dinette for four crew Plentiful storage Microphor heads Adjustable reading lights 110V outlets Granite counter-top in head Updated Grohe shower fittings Panasonic intercom system Navigation table Vanity A/C & Heat controls Stainless steel port lights & dead light hatch

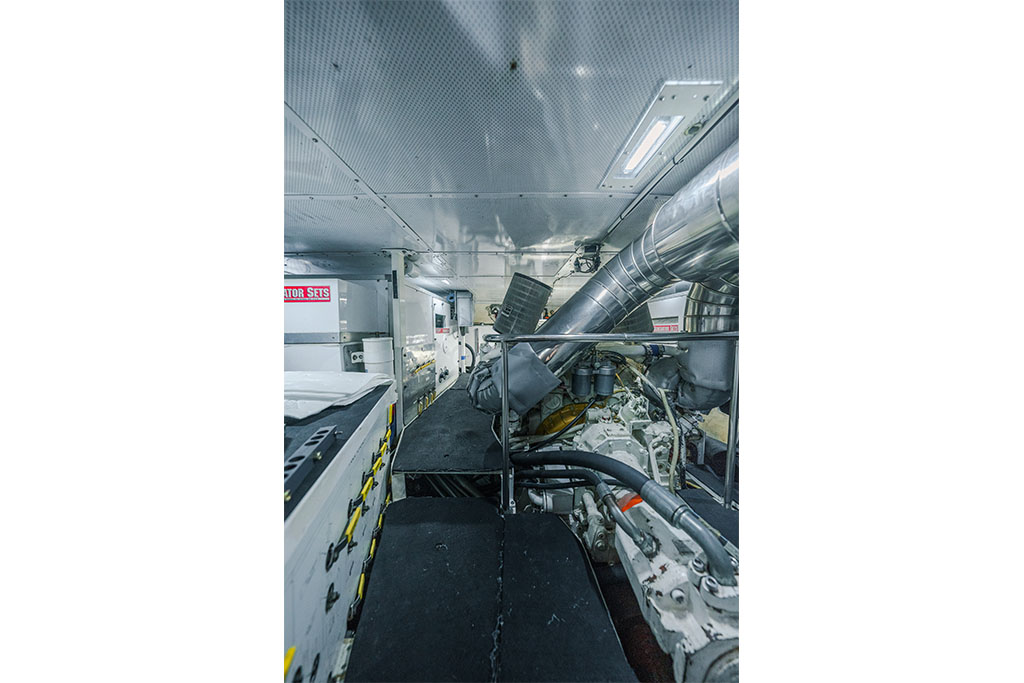

Engine Room:
Single MTU 183 12V – 452kW (600hp) Northern Lights 55kW (2) Automatic fire suppression system Tank manifold controls Emergency overboard bilge pumps Accumulator – new 2020 Fuel transfer pumps PTO systems CAT hydraulic pumps – serviced 2019 Low & High pressure Baldwin pumps Matrix watermaker Work bench and storage
